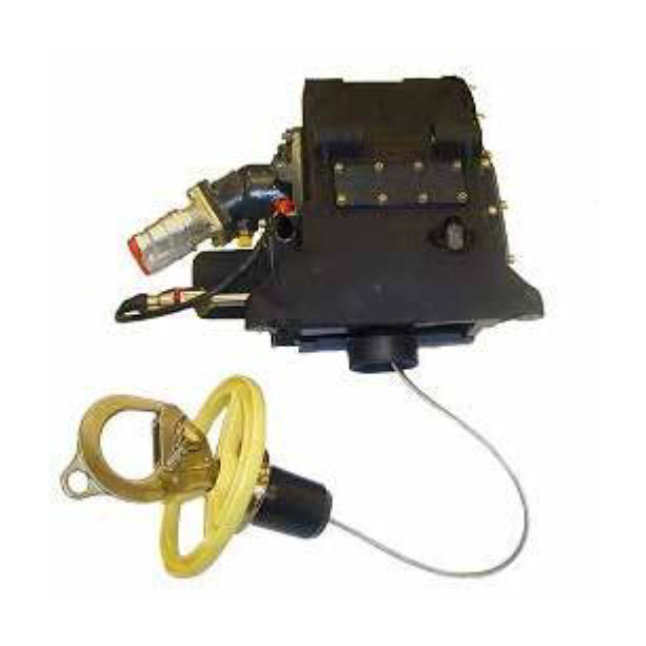

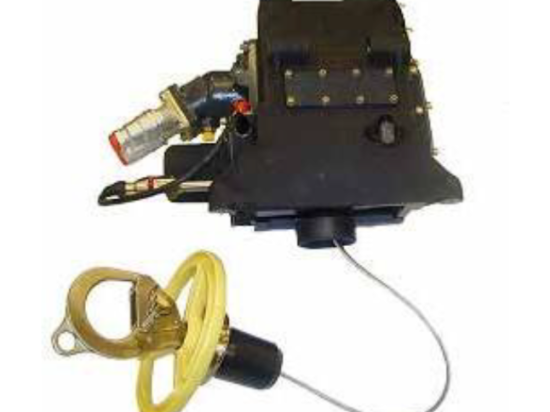

HYDRAULIC HOIST | P/N: 76363-300
(Code: 76363-300-N)
CONDITION :
ELECTRIC HOIST | P/N : 76363-300
Available : 🗸 repair or overhauled
Delivery times : TAT : between 90 and 120 calendar days.
Rotorplace is in parternship with Part 145 approved workshops to guarantee reliable and quality services.
UTC Aerospace Systems rescue hoists offer superior performance, reliability and capability as well as low cost of ownership to helicopter operators worldwide.
Current applications include Eurocopter AS332, AS532, SA321 and SA330 and Westland Lynx.
Height : 17.55 in. (44.6 cm).Width : 10.82 in. (27.5 cm). Hoist Length : 13.81 in. (35.1 cm). System Weight : 55.5 lb. (25.2 kg).
#Design Features #Redundant limit switches, Electrical harness protected against EMI, Emergency cable cut, Self-clamping carbon brake, Cable guiding device, Aluminum housing, DLOCK hook assembly (ordered separately). System Weight (without hook) : 55.5 lb. (25.2 kg) Cable Length (usable) : 164 ft. (50 m) Cable Type : Galvanized steel Hoisting Cable Speed :Up to 100 ft. per minute (0.5m/s) Supply Pressure : 2500 psi. (175 bar) Control Power :E lectric 28 VDC Rate Flow : 3.2 gal. per minute (12 L/min). Maximum Lift Load : 600 lb. (272 kg).Limit Load : 1500 lb. (667 daN) Ultimate Load : 2250 lb. (1001daN).
System Weight (without hook) : 55.5 lb. (25.2 kg) Cable Length (usable) : 164 ft. (50 m) Cable Type : Galvanized steel Hoisting Cable Speed : Up to 100 ft. per minute (0.5m/s) Supply Pressure : 2500 psi. (175 bar) Control Power :E lectric 28 VDC Rate Flow : 3.2 gal. per minute (12 L/min). Maximum Lift Load : 600 lb. (272 kg).Limit Load : 1500 lb. (667 daN) Ultimate Load : 2250 lb. (1001daN).
Certaines images ne sont pas contractuelles, utilisez le numéro de pièce pour commander.
