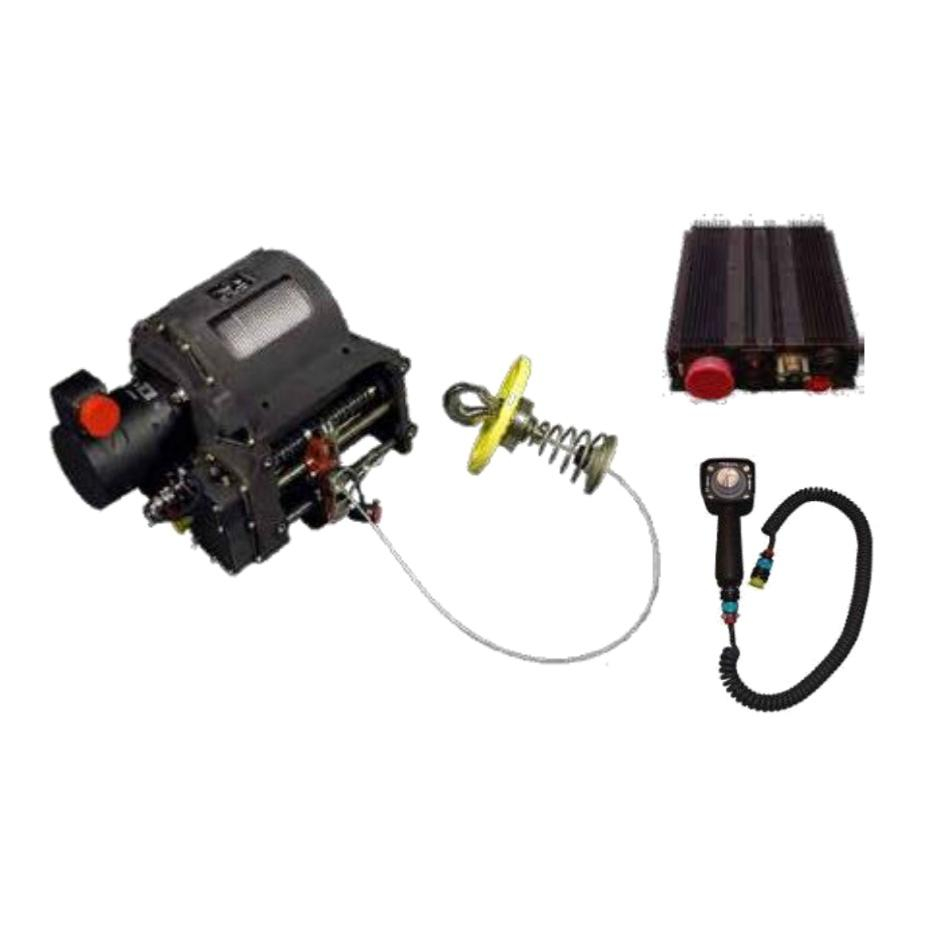

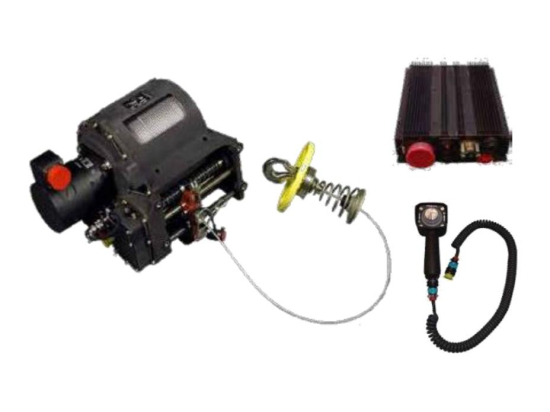

ELECTRIC HOIST | P/N: 76378-260-D

(Code: 76378-260-D-N)

CONDITION :

mro new

ELECTRIC HOIST | P/N : 76378-260-D
Available : 🗸 repair or overhauled
Prices and delivery times will be confirmed after the expertise by the workshop.
Rotorplace is in parternship with Part 145 approved workshops to guarantee reliable and quality services.

UTC Aerospace Systems rescue hoists offer superior performance, reliability and capability as well as low cost of ownership to helicopter operators worldwide.
Current applications include Eurocopter AS360, AS365, AS565 and EC155, Mil Mi-2and Mi-8, PZL W3 Sokol and Kania, and Sikorsky S-61.

Height: 19.3 in. (49 cm).Width :10.2 in. (25.9 cm).HoistLength:18.1 in. (56.1 cm).Hoist Weight :85.32 lb. (38.7 kg).

#DesignFeatures #Redundant limit and decel switches, Emergency cablecut, Self-clamping carbon brake,Cable guiding device, Intercomswitch on pendant.

System Weight : 101 lb. (45.8 kg)Cable Length (usable) : 297 ft. (90 m) HoistType : External electric hoist. Cable Type : Galvanized steel cable according to MIL-W-83140 Hoisting Cable Speed : Up to 150 ft. per minute (0.75m/s) Control Power :Electric 28 VDC. Maximum Lift Load : 600 lb. (272 kg). Limit Load :1500 lb. (667 daN) Ultimate Load : 2250 lb. (1001daN).



Certaines images ne sont pas contractuelles, utilisez le numéro de pièce pour commander.
