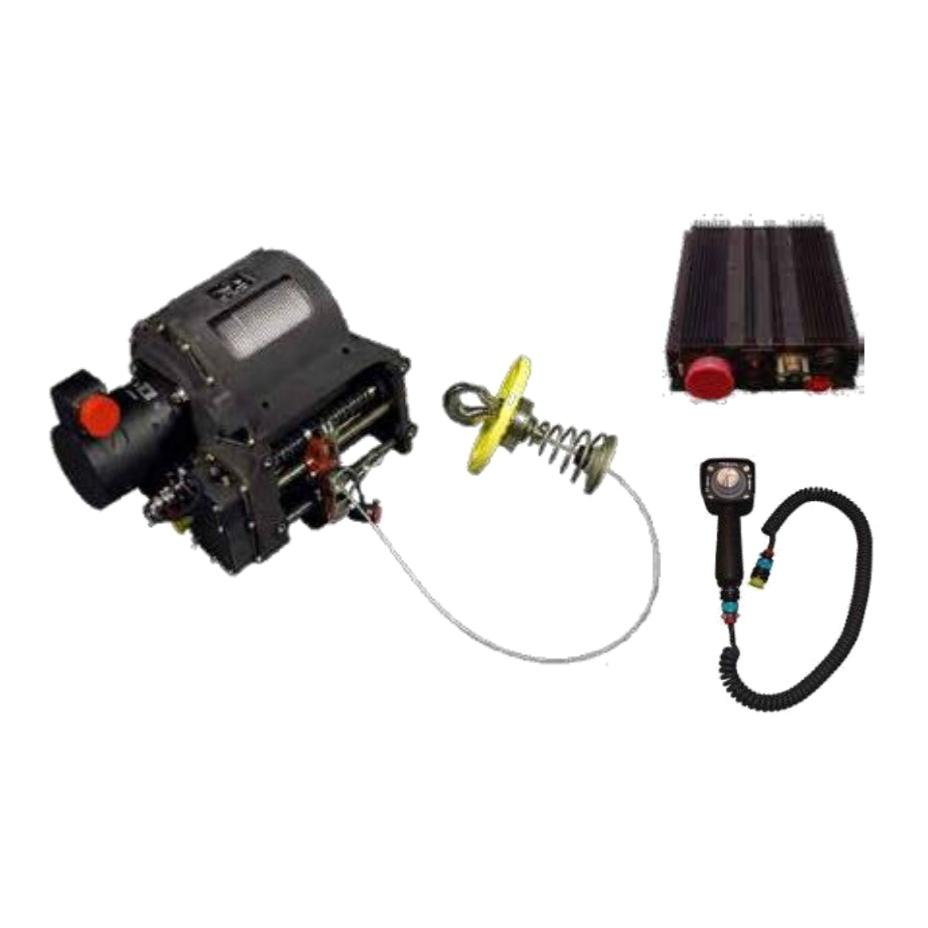

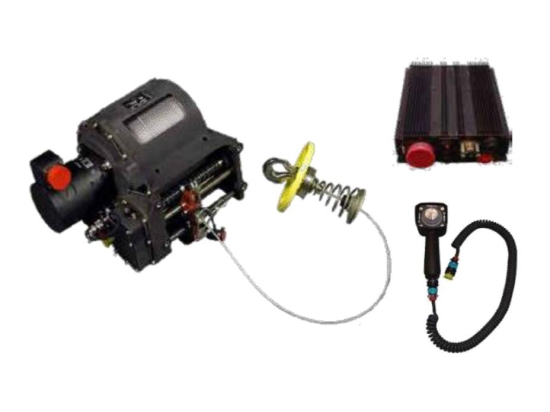

HOIST | P/N: 76378-260
(Code: 76378-260-MRO)
CONDITION :
Available : 🗸 repair or overhauled
Delivery time : TAT between 90 and 120 calendar days.
Rotorplace is in parternship with Part 145 approved workshops to guarantee reliable and quality services.
UTC AerospaceSystemsrescue hoists offer superior performance, reliability andcapability as well as low cost of ownership to helicopter operatorsworldwide.
Current applications include Eurocopter AS360, AS365, AS565 and EC155, Mil Mi-2and Mi-8, PZL W3 Sokol and Kania, and Sikorsky S-61.
#DesignFeatures #Redundant limit and decel switches, Emergency cablecut, Self-clamping carbon brake, Cable guiding device, Intercomswitch on pendant.
System Weight : 92.6 lb. (42 kg) Cable Length (usable) : 164 ft. (50 m) Hoist Type : External electric hoist Cable Type : Galvanized steel cable according to MIL-W-83140 Hoisting Cable Speed : Up to 150 ft. per minute (0.75m/s) Control Power : Electric 28 VDC. Maximum Lift Load : 600 lb. (272 kg). Limit Load :1500 lb. (667 daN)Ultimate Load : 2250 lb. (1001daN).
Certaines images ne sont pas contractuelles, utilisez le numéro de pièce pour commander.
