HOIST | P/N 76378-500 | P/N: 76378-500
(Code: 76378-500-N)
CONDITION :

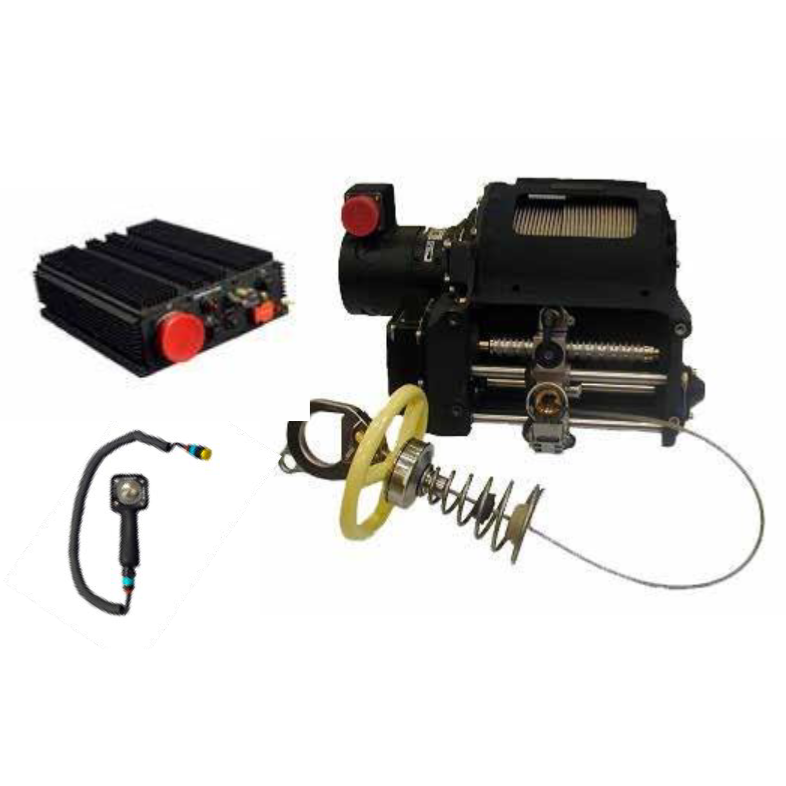

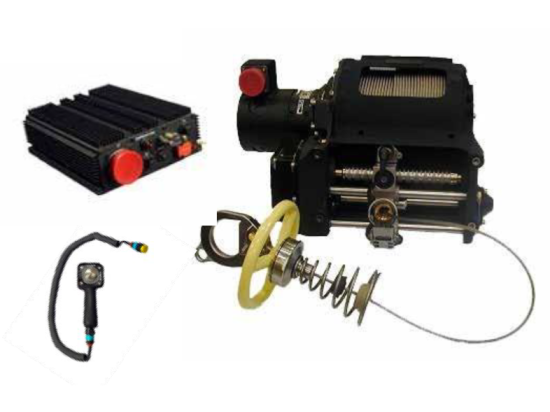

ELECTRIC HOIST | P/N : 76378-500
Available : 🗸 overhauled or repair
Delivery times : TAT between 90 and 120 calendar days.
Rotorplace is in parternship with Part 145 approved workshops to guarantee reliable and quality services.
UTC Aerospace Systems rescue hoists offer superior performance, reliability and capability as well as low cost of ownership to helicopter operators worldwide.
Current applications include Mil Mi-2 and Mi-8, PZL W3 Sokol / Kania, and SikorskyS-61.
Height : 15.83 in. (40.2 cm).Width : 11.42 in. (29 cm). Hoist Length : 17.72 in. (45 cm).Hoist Weight : 85.98 lb. (39 kg).
#DesignFeatures #Redundant limit and decel switches, Electrical harness protected against EMI, Emergency cable cut, Self-clamping carbon brake, Intercom switch on pendant, LEBUS drum grooving for safe and reliable storage.
System Weight :104.72 lb. (47.5 kg)Cable Length (usable):295 ft. (90 m)CableType : Stainless steel cable according to MIL-DTL-83140Rated Cable Speed :Up to 150 ft. per minute (0.75 m/s)Control Power :Electric 28 VDC Maximum Lift Load :600 lb. (272 kg).Limit Load :2100 lb. (934 daN)Ultimate Load : 3150 lb. (1402daN)
Certaines images ne sont pas contractuelles, utilisez le numéro de pièce pour commander.
